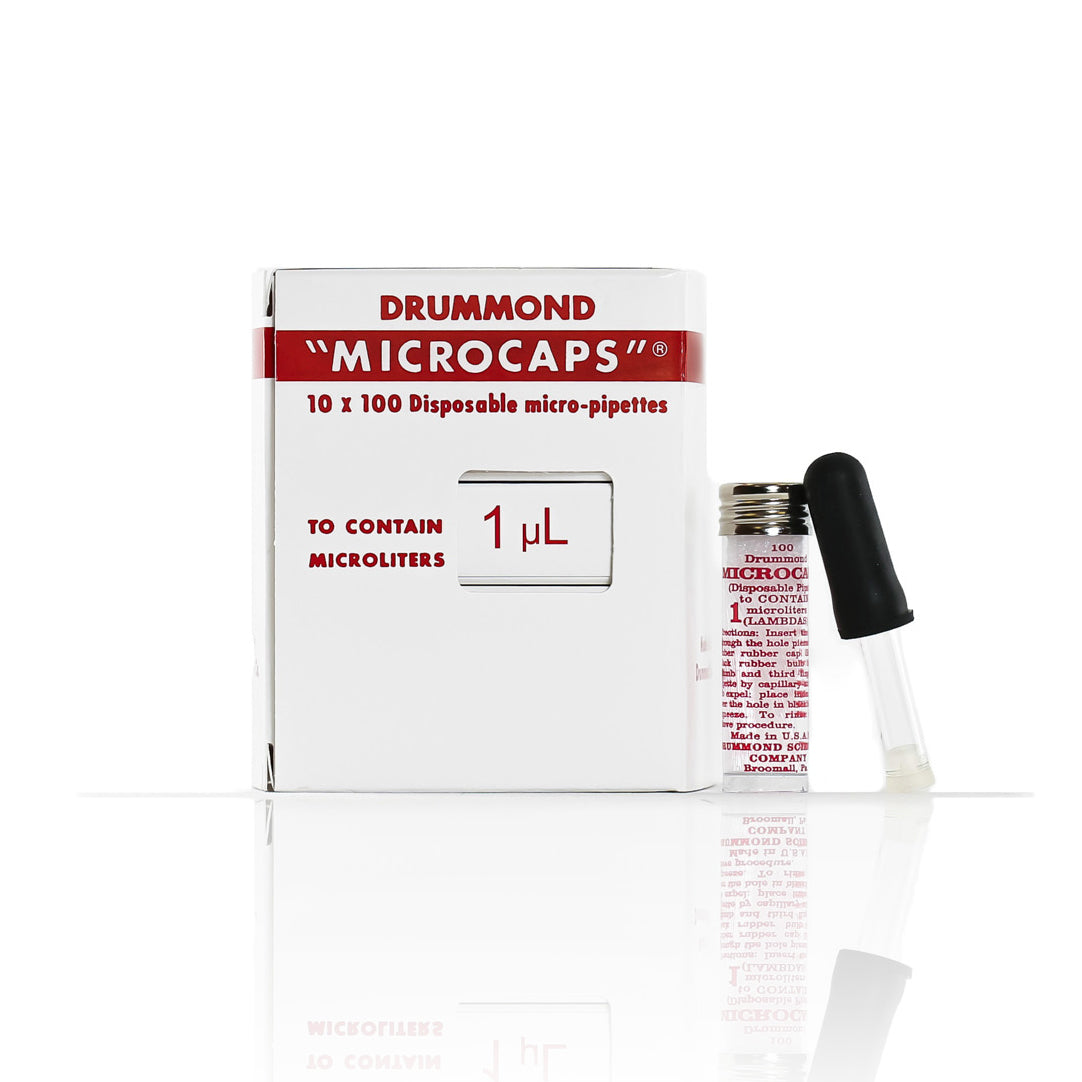

• 1 µL Microcaps from Drummond Scientific

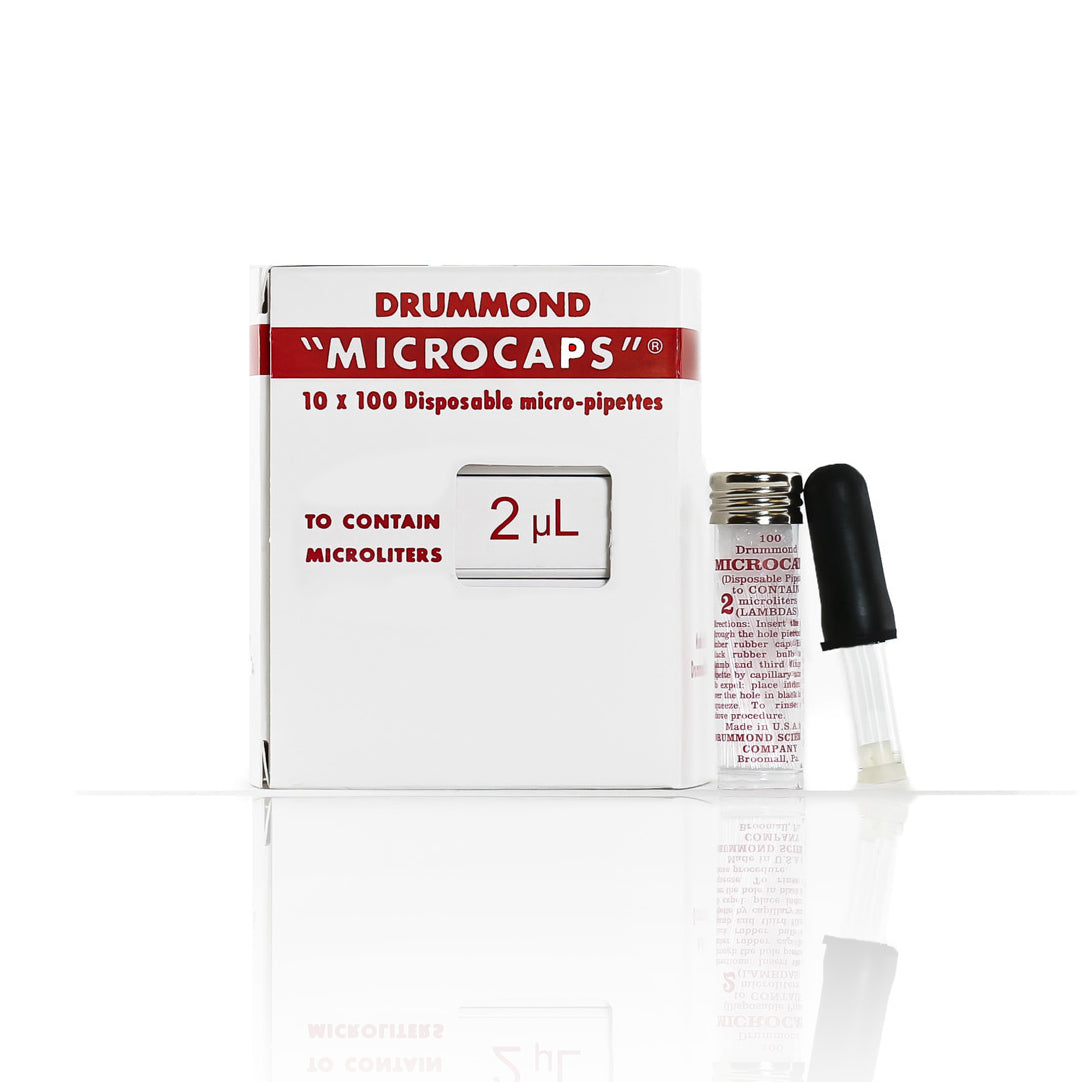

  • 2 µL Microcaps from Drummond Scientific

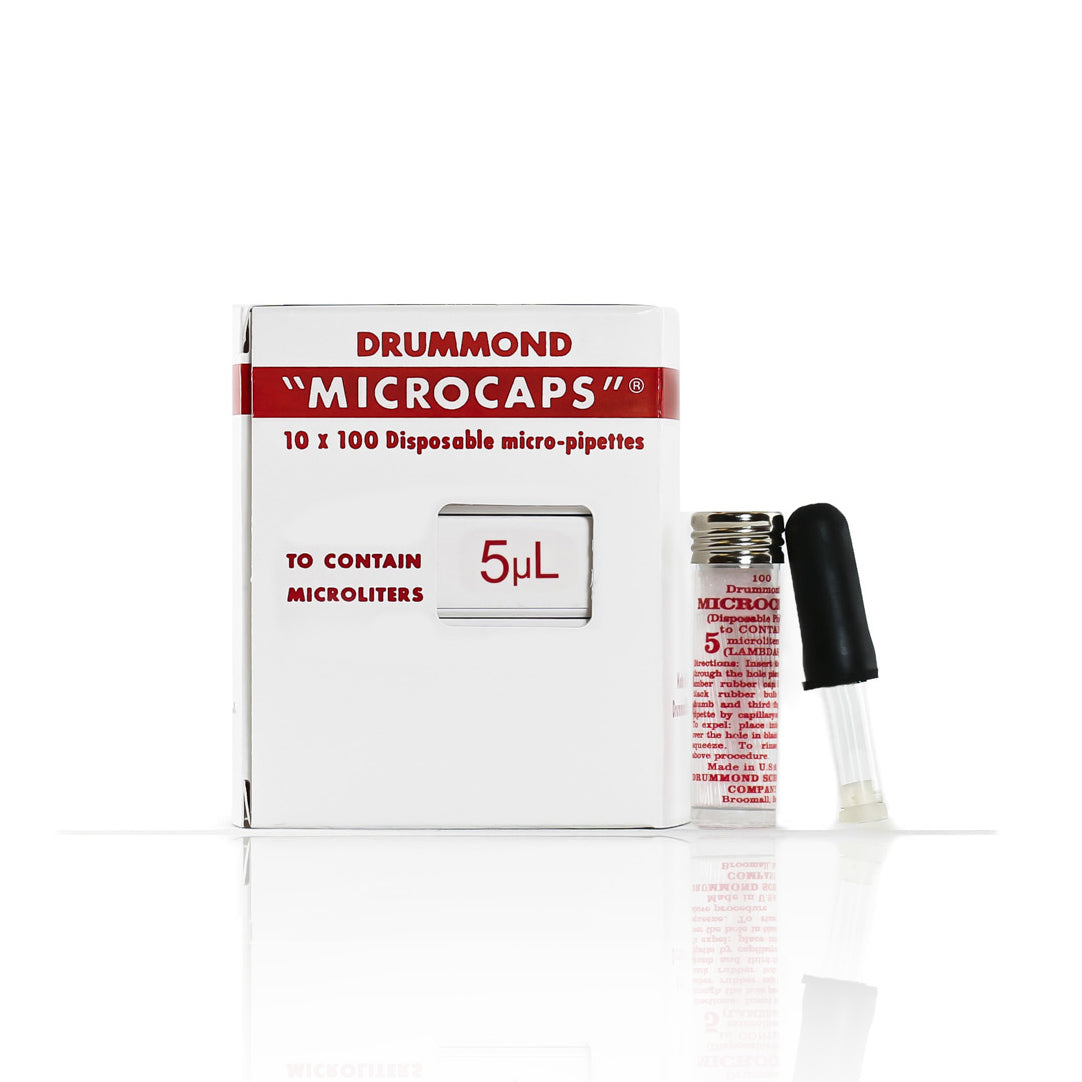

  • 5 µL Microcaps from Drummond Scientific

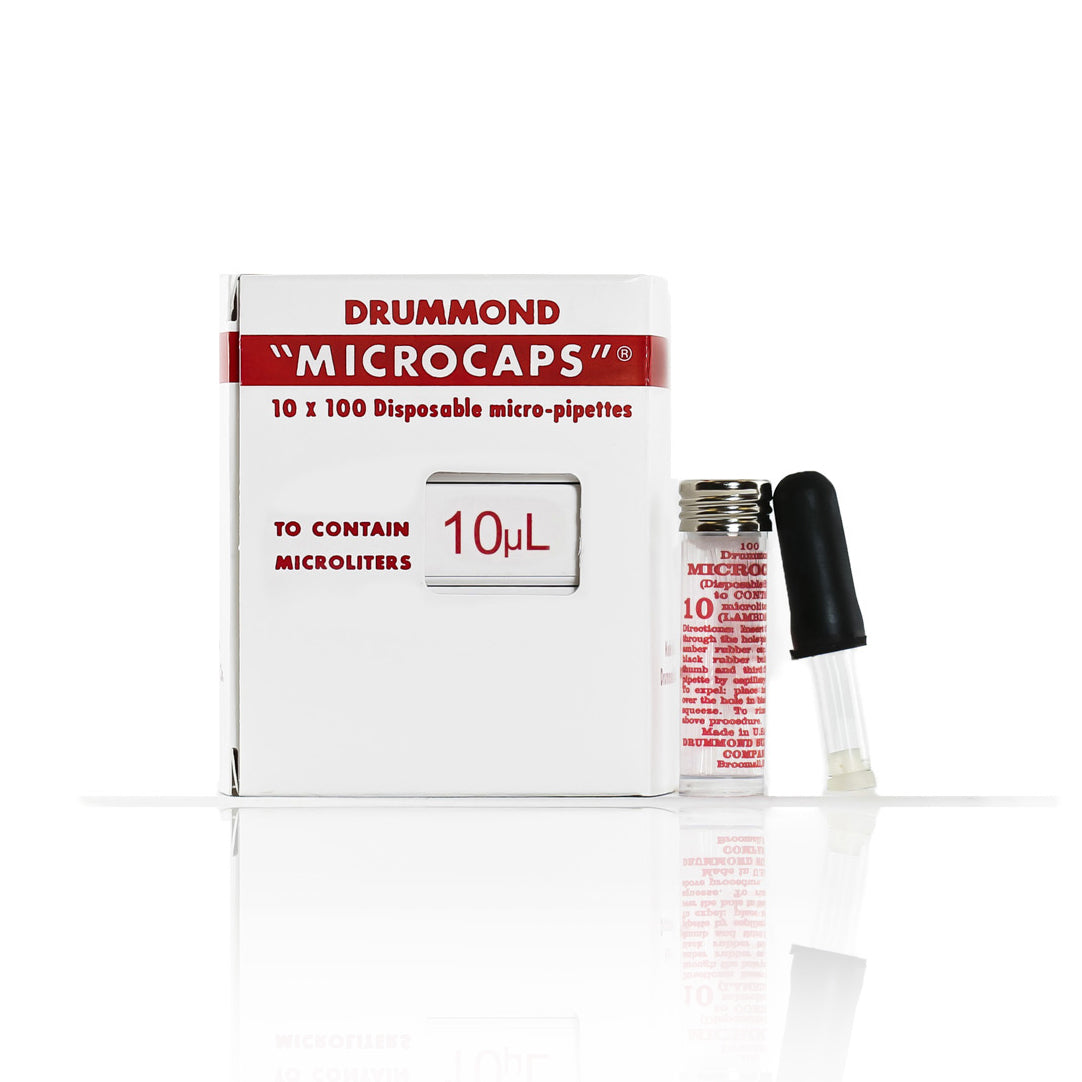

  • 10 µL Microcaps from Drummond Scientific

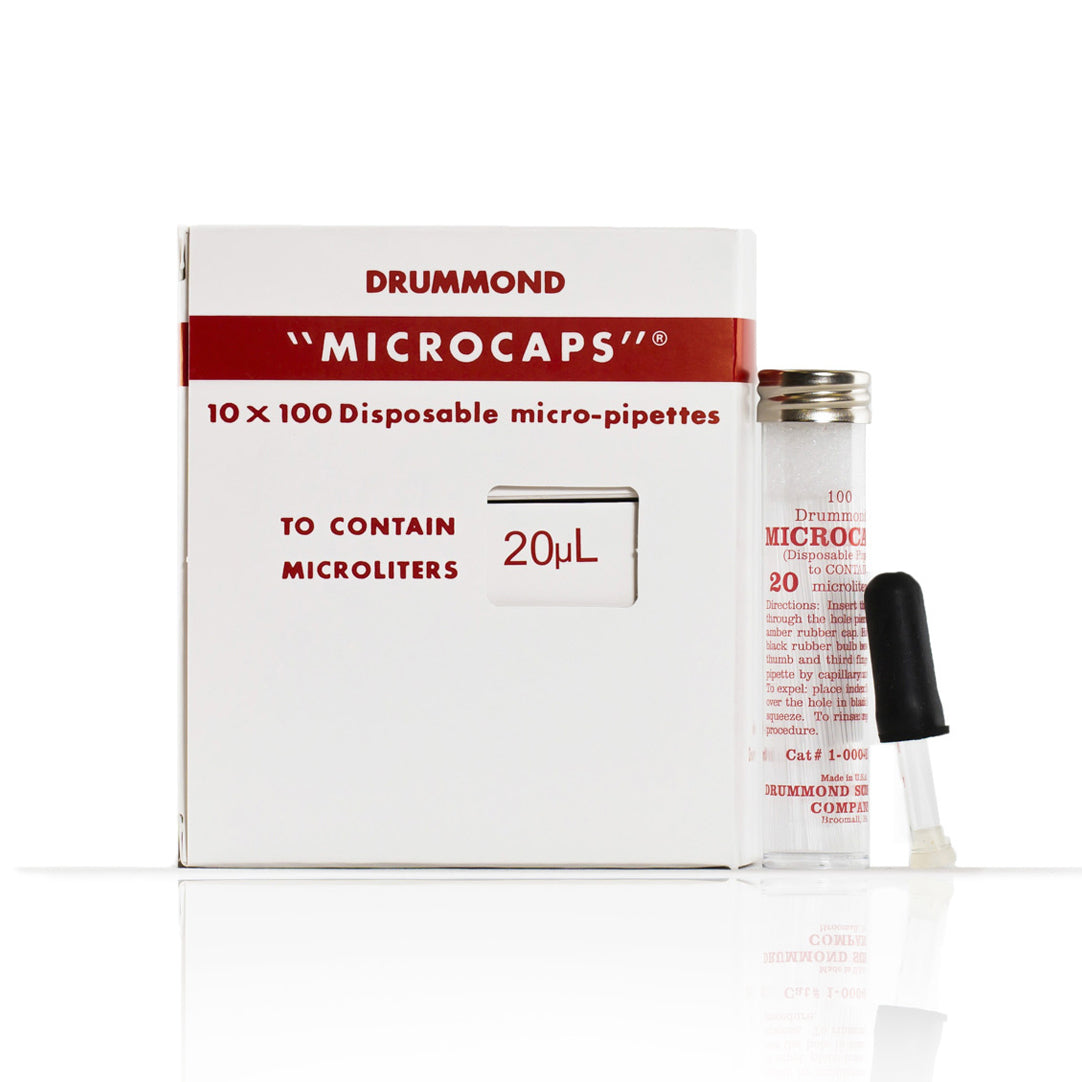

  • 20 µL Microcaps from Drummond Scientific

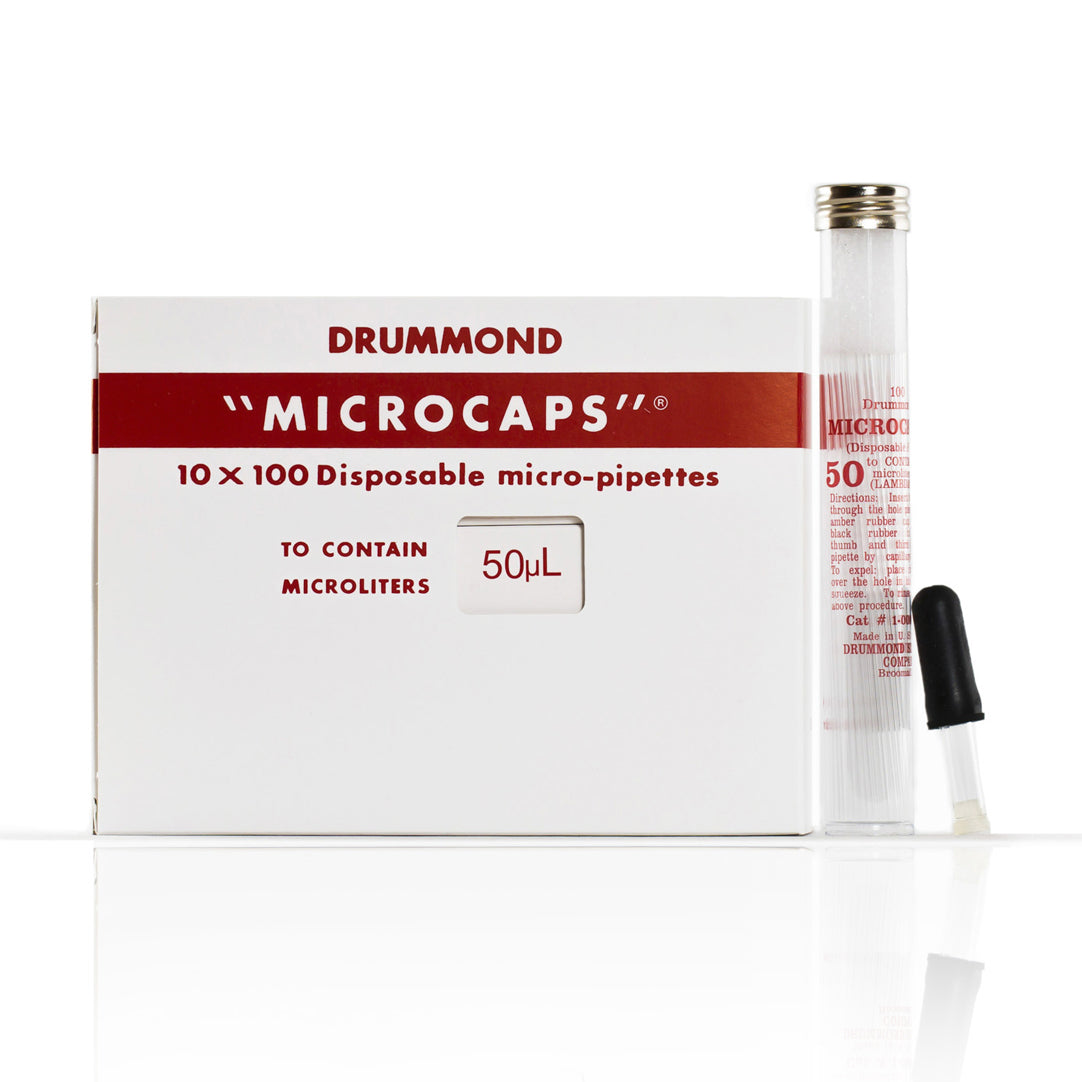

  • 50 µL Microcaps from Drummond Scientific

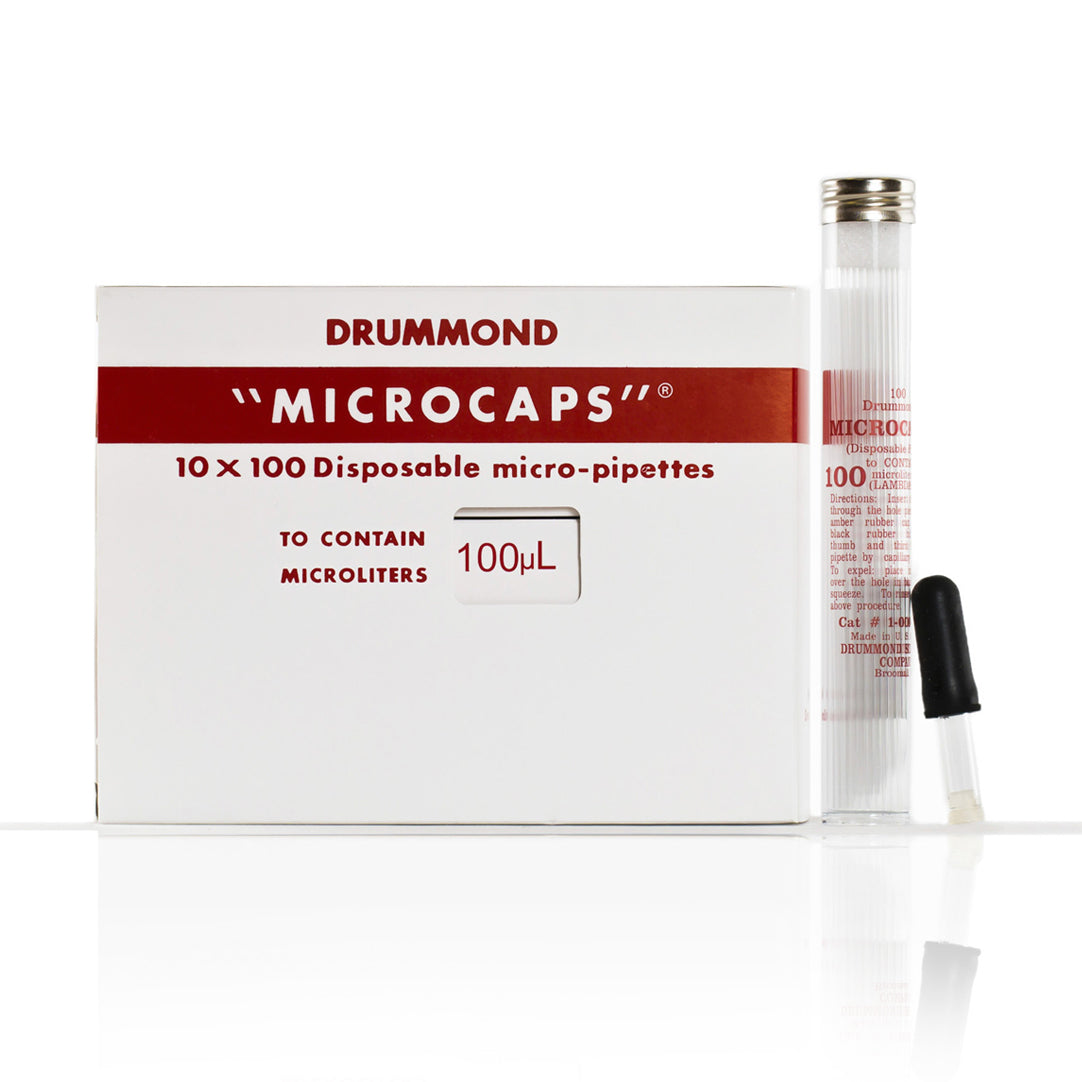

  • 100 µL Microcaps from Drummond Scientific
1 1

MicroCaps®

MicroCaps®

1-000-0001/CA

$213.57
$213.57
Sale Contact for Availablilty
Shipping calculated at checkout.
Size

Drummond Scientific offers the original, disposable Microcap perfect for fast, safe, clean, and accurate liquid transfers in micro quantities. Made of precision-bore glass capillary tubes and comfortable squeeze bulbs, Microcaps are high-quality yet inexpensive liquid transfer tools ideal for various scientific applications.

The tubes are cut to a predetermined length, ensuring accuracy and consistent precision.

As versatile as it is easy to use, Capillary action draws the fluid into the tube, and a squeeze of the bulb will dispense it.

A unique spotting holder is available for spotting applications such as TLC, allowing the liquid to be dispensed simply by touching the tube to the spotting surface.

Microcaps have an accuracy of ±1%.1

Additional sizes are available by request.  Please contact us for availability.

Microcap Case Sizes & Specifications

Cat. No Capacity (µL) Length (mm) O.D./I.D. (in.)  O.D./I.D. (mm)
1-000-0001/CA .10 16 .0180 / .0035 .457 / .0892
1-000-0010-CA 1.0 32 .0260 /. 0079 .660 / .1994
1-000-0020/CA 2.0 32 .0300 / .0111 .762 / .2822
1-000-0500/CA 5.0 32 .0370 / .0176 .940 / .4460
1-000-0100/CA 10.0 41 .0315 / .02194 .800 / .5573
1-000-0200/CA 20.0 64 .0355 / .0248 .902 / .6307
1-000-0500/CA 50.0 100 .0430 / .0314 1.092 / .7978
1-000-1000/CA 100.0 116 .0565 / .0413 1.435 / 1.0478
View full details

Microcaps available for order by special request

Microcap Size Guide

Standard Microcap Sizes & Specifications

Cat. No Capacity (µL) Length (mm) O.D./I.D. (in.)  O.D./I.D. (mm)
1-000-00025 0.25 32 .0210 / .0039 .533 / .0998
1-000-0005 0.5 32 .0220 / .0056 .559 / .1410
1-000-0030 3.0 32 .0340 / .0136 .864 / .3454
1-000-0033 3.33 32 .0340 / .0136 .864 / .3434
1-000-0040 4.0 32 .0340 / .0157 .864 / .3990
1-000-0060 6.0 38.4 .0370 / .0176 .940 / .4460
1-000-0066 6.66 72 .0340 / .0135 .864 / .3434
1-000-0070 7.0 44.8 .0370 / .0176 .940 / .4460
1-000-0080 8.0 44 .0380 / .0189 .965 / .4811
1-000-0090 9.0 49.49 .0380 / .0189 .965 / .4811
1-000-0150 15.0 54 .0340 / .0234 .864 / .5946
1-000-0250 25.0 65 .0382 / .0276 .970 / .6998
1-000-0300 30.0 78 .0382 / .0276 .970 / .6998
1-000-0350 35.0 70 .0430 / .0314 1.092 / .7978
1-000-0400 40.0 52 .0555 / .0390 1.410 / .9911
1-000-0447 44.7 51.8 .0565 / .0413 1.435 / 1.0478
1-000-0750 75.0 101 .0514 / .0383 1.306 / .9723
1-000-0800 80.0 92.80 .0565 / .0413 1.435 / 1.0487
1-000-2000 200.0 127 .0710 / .0557 1.803 / 1.4161

Special Microcap Sizes & Specifications

Cat. No Capacity (µL) Length (mm) O.D./I.D. (in.)  O.D./I.D. (mm)
1-000-0002 0.2 32 .0180 / .0035 .457 / .0892
1-000-0005-64 0.5 64 .0210 / .0039 .533 / .0998
1-000-0010-64 1.0 64 .0220 / .0056 .559 / .1410
1-000-0010-55 1.0 55 .0250 / .0060 .635 / .1521
1-000-0020-55 2.0 55 .0260 / .0085 .660 / .2151
1-000-0030-55 3.0 55 .0340 / .0140 .864 / .2637
1-000-0050-55 5.0 55 .0340 / .0134 .864 / .3401
1-000-0200-32 20.0 32 .0470 / .0351 1.194 / .8920
1-000-0400-80 40.0 80 .0430 / .0314 1.092 / .7978
1-000-1000-100 100.0 100 .0610 / .0444 1.549 / 1.1283

Replacement Parts

1-000-9000 : Bulb Dispenser
1-000-9003 : Silicon Tip
